Sodium-ion Battery (Quasi-Solid-State)
Sodium-ion Battery (Quasi-Solid-State battery)
About Sodium-ion Battery (Quasi-Solid-State)

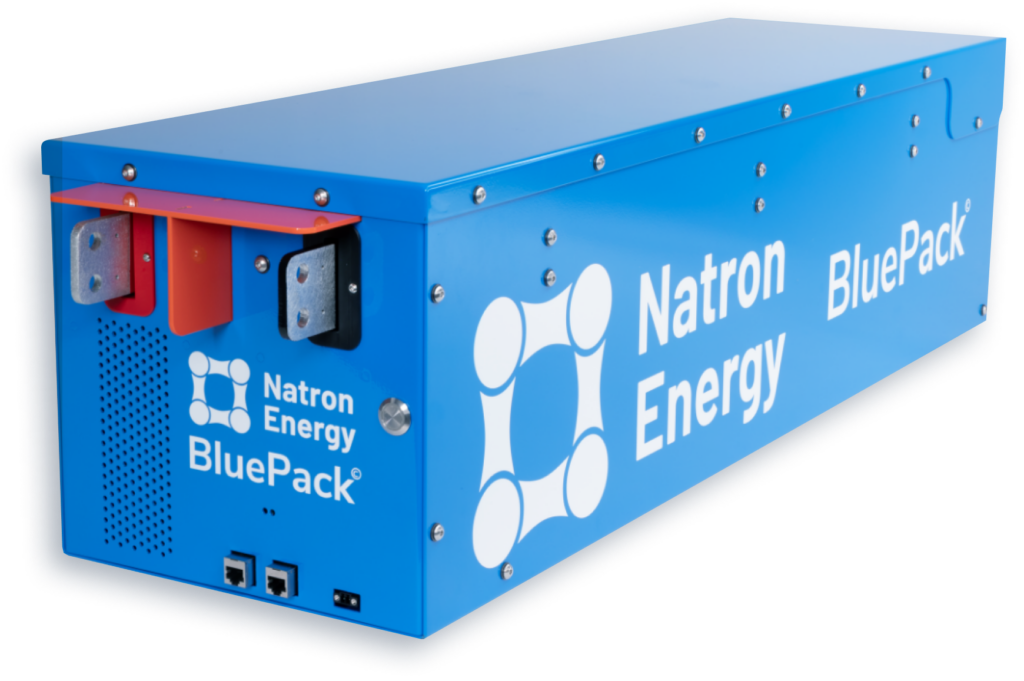

Blue Pack™ Critical
Power Battery
The Natron Blue Pack battery is a 25kW, 48 volt building block for systems up to 812 volts. Standard configurations are 10-string for 480 volt critical power applications and 14-string configuration for 672 volt industrial applications. It is designed for extremely rapid charge/discharge, providing between 50,000 & 100,000 discharge cycles depending on application. It is incapable of thermal runaway and operates at extremely wide temperature ranges. Having twice the power of lithium-ion, it's a safer alternative that is also responsibly and ethically sourced.
Play Video
>50,000 Cycles
-20°C to + 45°C Operation
No rare earth materials
Nonflammable, no thermal runaway
Specs at a glance
- Designed for backup power, EV fast charging, decarbonisation and peak shaving
- Full recharge capability in 15 minutes or less, ready immediately
- Applications from 48v to 812v
Information & Facts
Scalable Power Platform
from KW to Multi MW
Scalable Power Platform from KW
to Multi MW
Sodium ion batteries offer a wide temperature operating range and is twice the power of lithium. It has a round-trip efficiency CE >98%.
Sodium-ion Inherently
Safe and Fault Tolerant

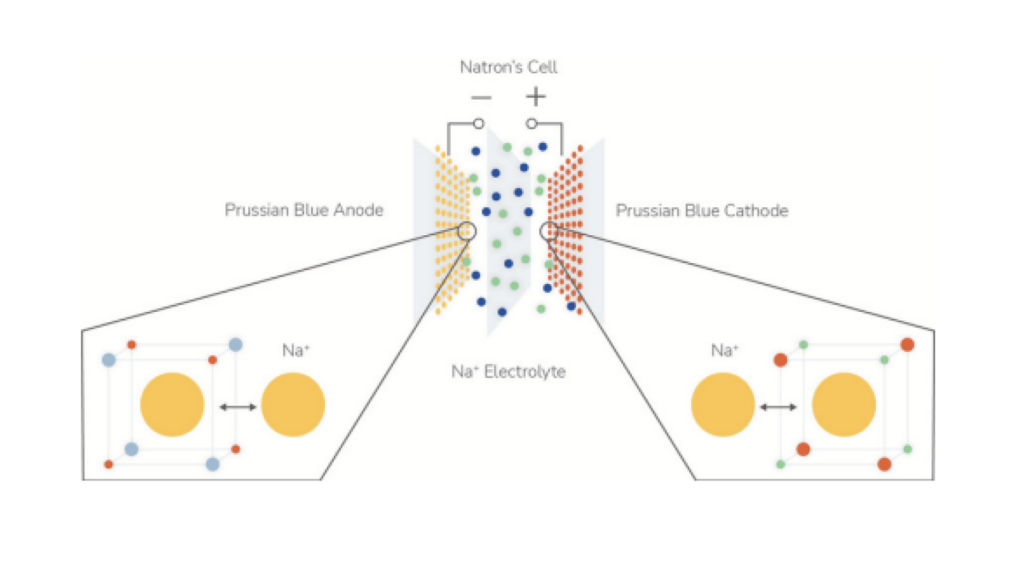

Sodium-ion and Prussian Blue Chemistry
- Nonflammable during and after nail penetration or flame test.
- No damage or loss in performance from short circuit or overcharge to 35% overvoltage.
- No rare-earth materials or caustic metals.
Pack Spec
Norminal Capacity
48 V, 25 kW, 2 minutes
Voltage Rating Swing
58V to 32V
Maximum Current Rating
760 A
Size
37”L x 9”H x 9.5”W
Weight Approximately
150 lbs
Communication
External
MODBUS Ethernet 100 MBS
Internal Communication
CAN Bus 2.0B 1 MBS
Quality Management
Introducing the Industry's Highest Power, Longest Life, Safest Battery*
High Power
Max Sustained Power per Energy (W/Wh)
Long Life
Deep Discharge Cycle Life
Safe and Fault Tolerant
No Fire or Explosion During
*Battle Hardened - Battery Packs and Cells survive ballistic penetration test with no fire, acid, or dangerous chemical exposure.
Datasheet: Bluepack
High Power
Over 500 kW sustained discharge

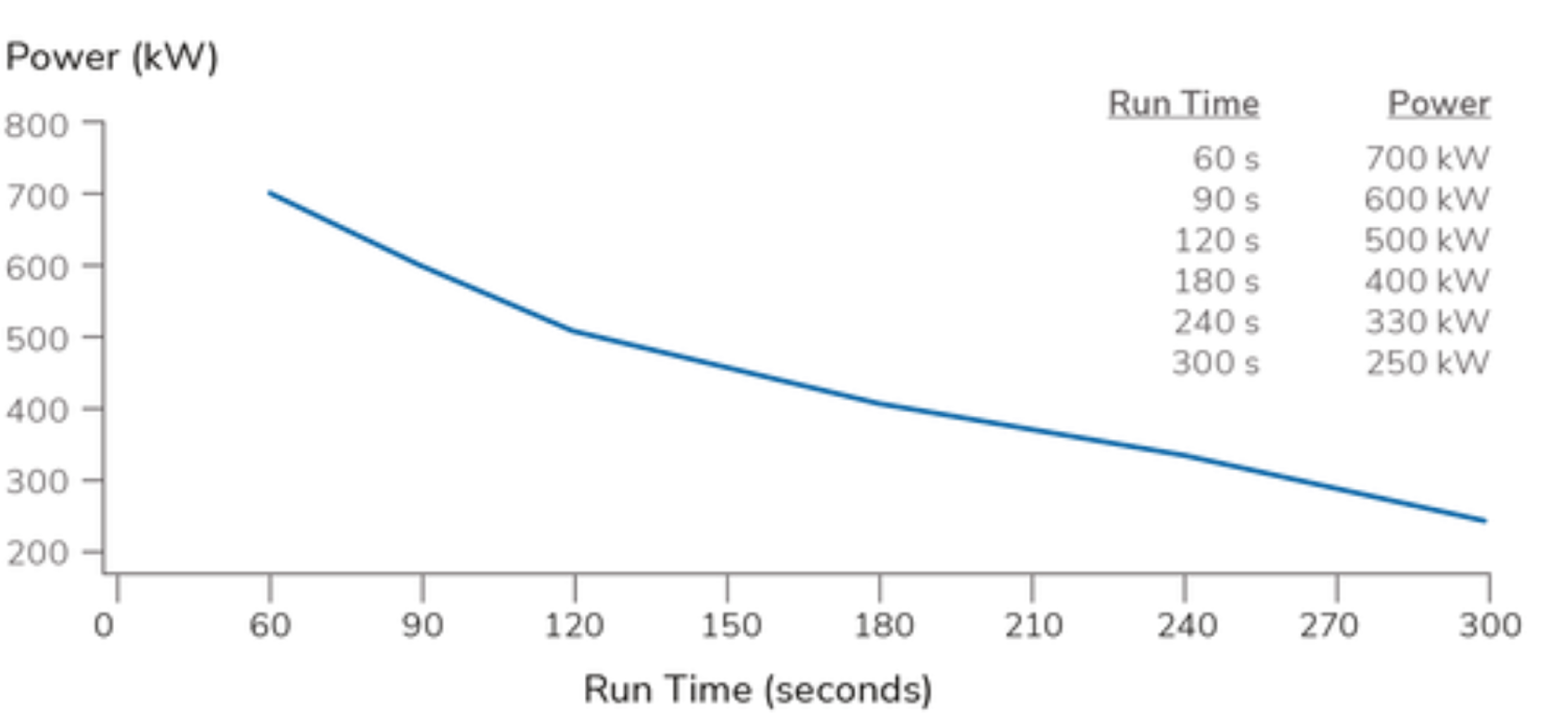

Power vs Run-time
Fast Recharge
Full 0 to >99% recharge in 15 mins

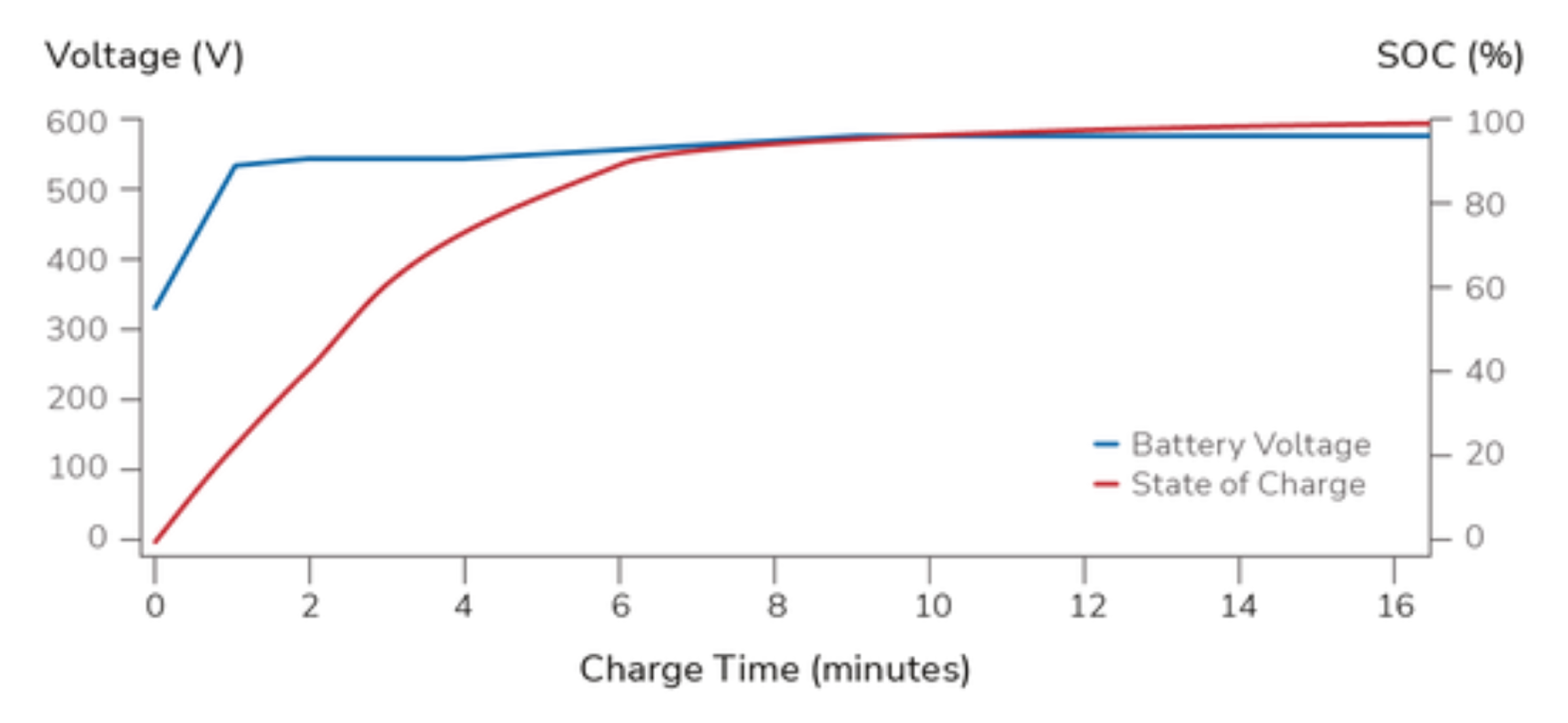

Fast Charge Performance (16C,CC - CV)

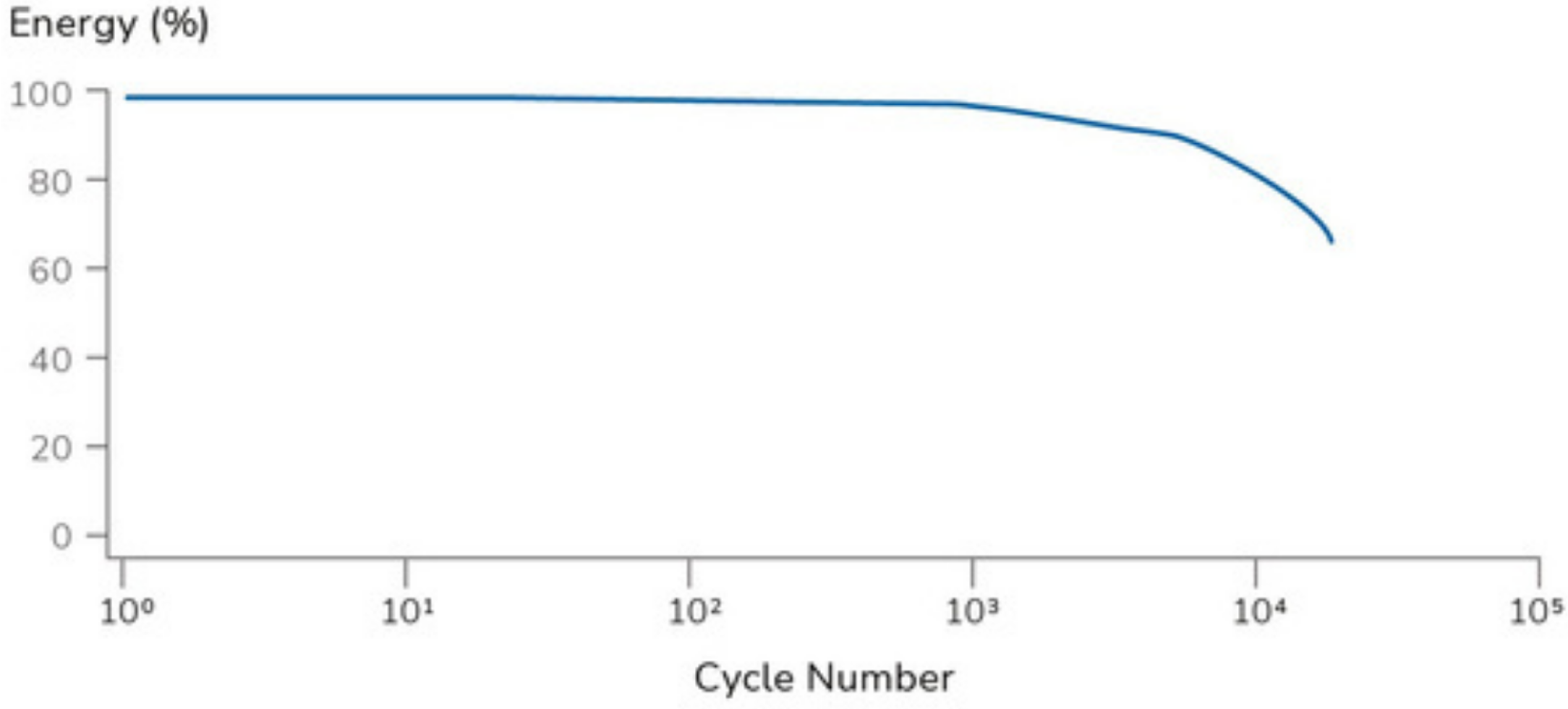

Long Life Cycle
Best-in-class cycle life: over 10k cycles at >90% energy utilization
Cycle Life >90% Energy Utilization
High Power
Over 500 kW sustained discharge

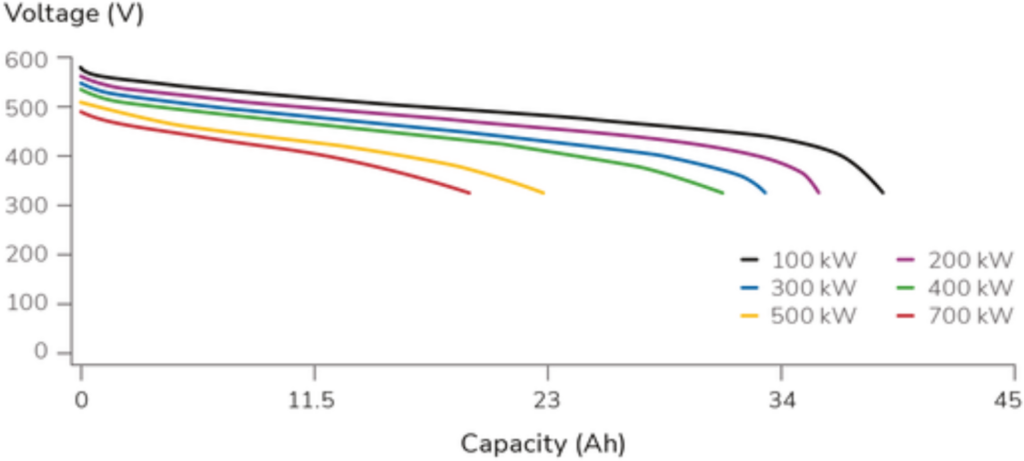

Discharge Performance
High Power
Over 500 kW sustained discharge
Power vs Run-time
Fast Recharge
Full 0 to >99% recharge in 15 mins
Fast Charge Performance (16C,CC - CV)
Long Life Cycle
Best-in-class cycle life: over 10k cycles at >90% energy utilization
Cycle Life >90% Energy Utilization
High Power
Over 500 kW sustained discharge
Discharge Performance
Additional Information
